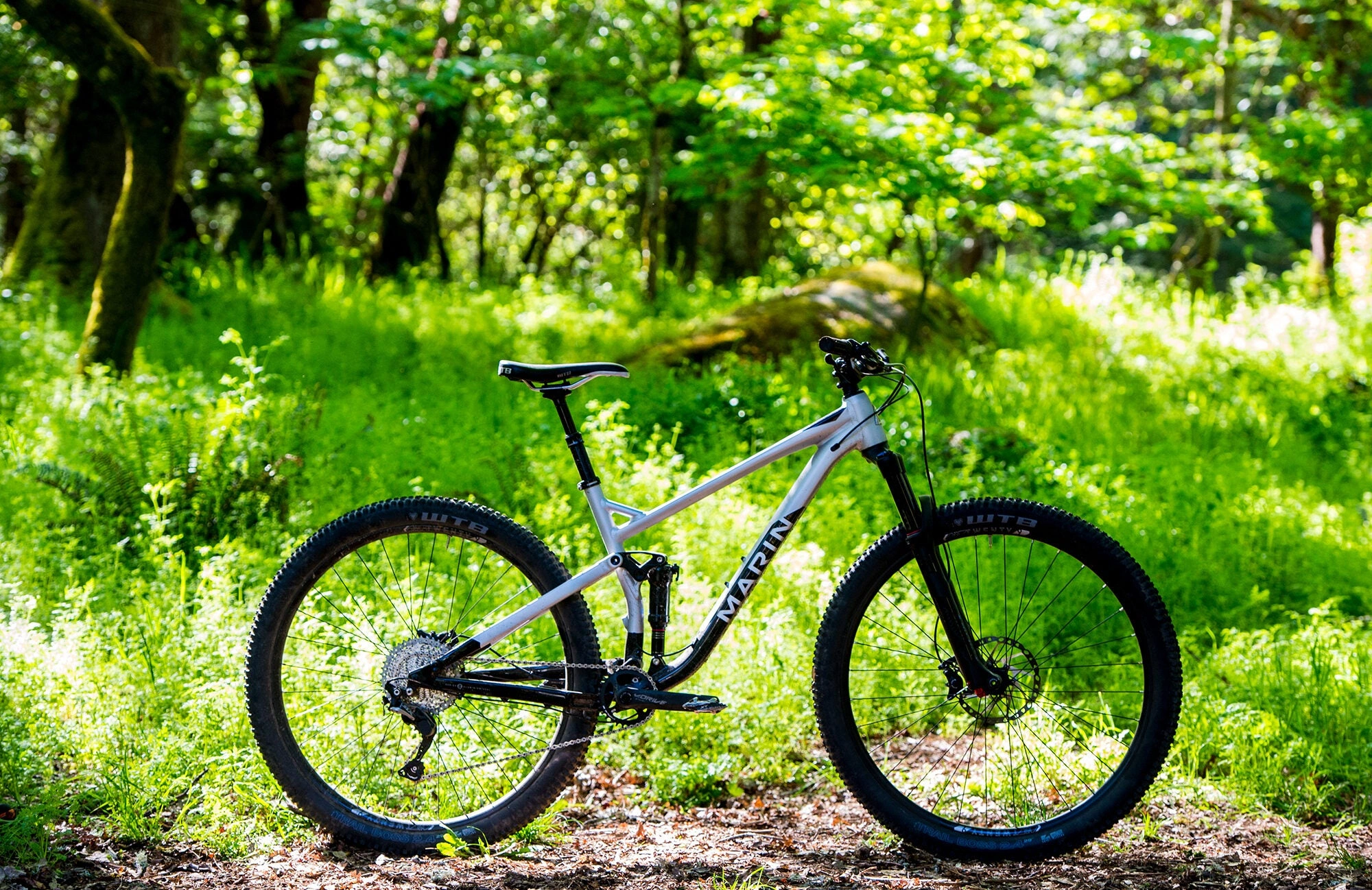

Color: Satin IndigoENDURANCE RIDESCHASING PERSONAL RECORDSFAST GROUP RIDESThe Rift Zone is our most speed oriented MultiTrac bike, createdfor the rider looking for the speed and roll over capabilities of29� wheels in a trail capable package. Long, low, and slack trailgeometry is more aggressive than an XC race bike for morecontrol at top speed, and more fun while chasing seconds.SIZE RIDER HEIGHT RANGES 5'3' to 5'6'M 5'6' to 5'10'L 5'10' to 6'2'XL 6'2' to 6'4' FRAMESeries 3 6061 Aluminum Frame, 29� Wheels, 120mm Travel MultiTrac Suspension Platform, Seatstay Mounted Post Mount Disc Brakes, 148x12mm Boost Thru-AxleFORKRockShox Recon RL 29�, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm OffsetREAR SHOCKRockShox Deluxe R Debonair, 210x50mm, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 25mm x M8 Hardware RIMSMarin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless CompatibleHUB REARFormula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32HHUB FRONTFormula, 110x15mm, Centerlock Disc, 32HSPOKES14g Black Stainless SteelTIRESVee Tire, Crown Gem 29x2.3', Dual Control Compound, Folding Bead, Tubeless CompatibleDERAILLEUR REARSRAM NX 11-SpeedDERAILLEUR FRONT- - -SHIFT LEVERSRAM NX 1x11-SpeedCRANKSETFSA Comet, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost SpacingBOTTOM BRACKETExternal Sealed Cartridge BearingsCHAINKMC X11 Extra LightCASSETTESunRace 11-Speed, 11-42TBRAKES FRONTShimano BR-M315 Hydraulic Disc, 180mm Centerlock RotorBRAKES REARShimano BR-M315 Hydraulic Disc, 160mm Centerlock RotorBRAKE LEVERSShimano BL-315 HydraulicHANDLEBARMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4� Up, 9� BackSTEMMarin 3D Forged Alloy, 45mmGRIPSMarin Single Clamp LockingHEADSETFSA No 57E, Sealed Cartridge Bearings, 1 1/8' x 1 1/2�SEATPOSTTranzX Dropper Post, YSP15 w/ 1x Remote, Size S 100mm Travel, All Other Sizes: 120mm TravelSADDLEMarin Speed ConceptPEDALS- - -EXTRASTranzX Bolt-on Thru-AxleA. STACK (MM) 609 614 619 623B. REACH (MM) 420 441 460 490C. HEADTUBE ANGLE 67.5� 67.5� 67.5� 67.5�D. HEADTUBE LENGTH (MM) 100 105 110 115E. SEATTUBE ANGLE VIRTUAL 74.8� 74.8� 74.8� 74.8�F. SEATTUBE ANGLE ACTUAL 67.4� 67.4� 67.4� 67.4�G. SEATTUBE LENGTH (MM) 385 420 450 480H. TOPTUBE ACTUAL (MM) 538 558 580 614I. TOPTUBE EFFECTIVE (MM) 585 612 636 670J. BOTTOM BRACKET HEIGHT (MM) 337.5 337.5 337.5 337.5K. BOTTOM BRACKET DROP (MM) 38.5 38.5 38.5 38.5L. CHAINSTAY (MM) 435 435 435 435M. WHEELBASE (MM) 1134 1156 1178 1209N. STANDOVER HEIGHT (MM) 684 713 725 750O. FORK OFFSET (MM) 51 51 51 51SEATPOST DIAMETER (MM) 30.9 30.9 30.9 30.9HANDLEBAR WIDTH (MM) 780 780 780 780STEM LENGTH (MM) 45 45 45 45CRANK LENGTH (MM) 170 175 175 175
